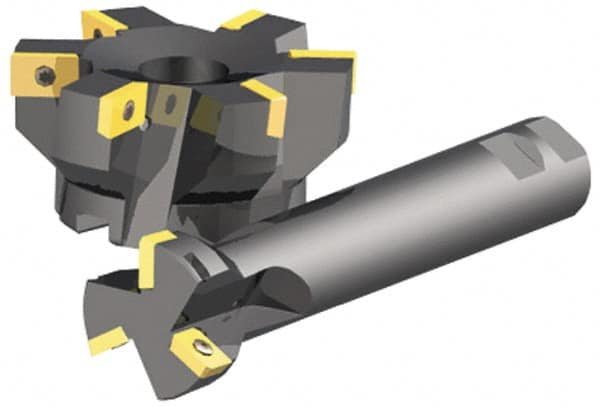

Kennametal - 1-1/2" Cut Diam, 0.58" Max Depth of Cut, 1-1/4" Shank Diam, Indexable Plunge End Mill - Cylindrical Shank, XPCW 2533L, XPMT 2533L Insert Style, KISZR Toolholder Style, Through Coolant
Item #: 75817148
Brand: Kennametal
Model #: 1024825
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5800 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Cutter Inserts | 2 |
| Insert Style | XPCW 2533L, XPMT 2533L |
| Toolholder Style | KISZR |
| Number of Flutes | 2 |
| Overall Length/Projection (Decimal Inch) | 7.8750 |
| Head Length (Decimal Inch) | 2.3750 |
| Insert Holding Method | Screw |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Weldon Flat | No |
| Through Coolant | Through Coolant |
| Maximum RPM | 7720 |
| ISO Number | KISZR150XP253L905 |
| End Mill Type | End Mill |
