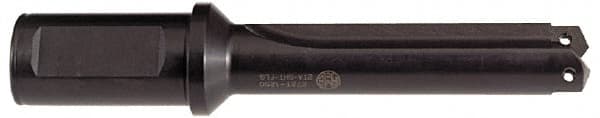

Allied Machine and Engineering - Series 1, 45/64 to 15/16" Diam, 1" Diam Straight Shank, Straight Flute Spade Drill - 22-1/4" Max Depth, 23-41/64" Body Length, 26-1/2" OAL, Extended Length, Through Coolant
Item #: 75858209
Brand: Allied Machine and Engineering
Model #: 29010S-100L
Exact Tooling IR#: 04
Features and Benefits
Straight flutes are used for horizontal machining center applications.
| Product Specifications | |
|---|---|
| Series | 1 |
| Minimum Drill Diameter (Inch) | 45/64 |
| Maximum Drill Diameter (Inch) | 15/16 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1 |
| Spade Drill Length | Extended Length |
| Overall Length (Inch) | 26-1/2 |
| Maximum Drill Depth (Inch) | 22-1/4 |
| Flute Type | Straight Flute |
| Flute Length (Inch) | 23-1/2 |
| Body Length (Inch) | 23-41/64 |
| Shank Length (Inch) | 3 |
| Through Coolant | Yes |
| Coolant Hole Thread Type | NPT |
| Shank End Coolant Hole Thread Size (Inch) | 1/8 |
