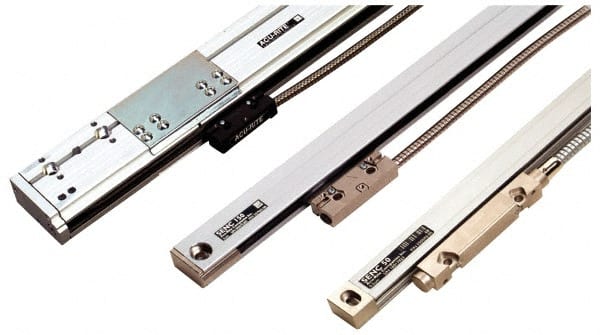

Acu-Rite - 10" Max Measuring Range, 5 µm Resolution, 16-3/8" Scale Length, Glass DRO Linear Scale - 3 & 5 µm Accuracy, IP53, IP64, 13' Cable Length, 0 to 50°C, Series SENC 150
Item #: 75868018
Brand: Acu-Rite
Model #: 558115-10
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Scale Type | Glass |
| Maximum Measuring Range (mm) | 250.00 |
| Maximum Measuring Range (Inch) | 10 |
| Resolution (Micron) | 5.00 |
| Resolution (mm) | 0.0050 |
| Resolution (Decimal Inch) | 0.000200 |
| Scale Length (mm) | 254.00 |
| Scale Length (Inch) | 16-3/8 |
| Scale Length (Decimal Inch) | 16.3750 |
| Accuracy (micrometer) | 3.00; 5.00 |
| Accuracy (Decimal Inch) | 0.000200 |
| Series | SENC 150 |
| IP Rating | IP53; IP64 |
| Cable Connection Type | DE-9P |
| Cable Length (Feet) | 13.00 |
| Operating Temperature Range (C) | 0 to 50 |
| Storage Temperature Range (C) | -20 to 70 |
