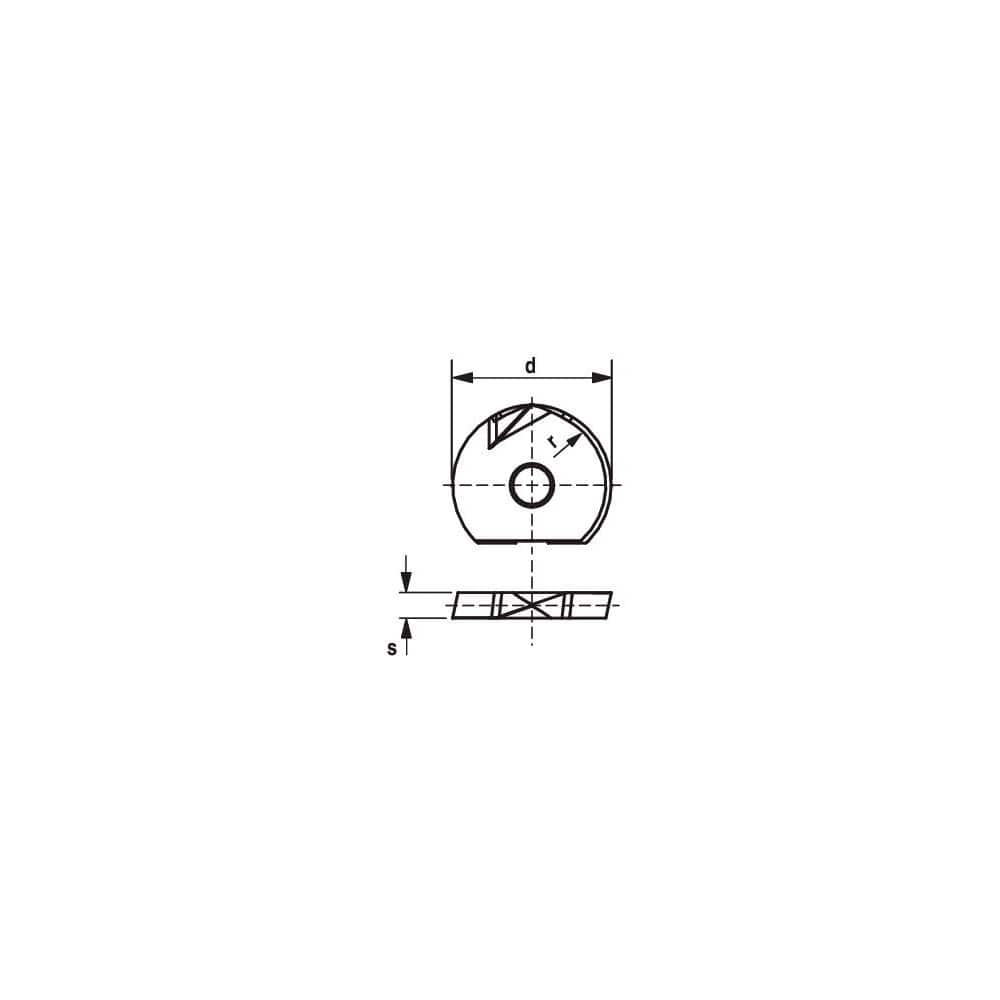

Milling Insert: ROHX 2540R12,5-FM3 CTPP216, CTPP216, Solid Carbide N/A Finish, 1.0000″ OAW
Item #: 75870188
Brand: Ceratizit
Model #: 5614736800
Product Specifications
| Insert Style | ROHX |
| Insert Size Code | 2540 |
| Insert Material | Solid Carbide |
| Width (Inch) | 1 |
| Manufacturer Grade | CTPP216 |
| Inscribed Circle (Decimal Inch) | 0.9843 |
| Corner Radius (Decimal Inch) | 0.4921 |
| Insert Hand | Neutral |
| Series | ROHX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (Decimal Inch) | 0.4922 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4922 |
| Insert Shape | Ball Nose |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Secondary Workpiece Material | Super-Alloys & Titanium; Stainless Steel |
| Secondary Workpiece Material Code | S; M; N; O |
| Iso Code | ROHX 2540R12,5-FM3 CTPP216 |
| Chip Breaker | FM3 |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 1.0000 |
| Width (Mm - 2 Decimals) | 1.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1575 |
