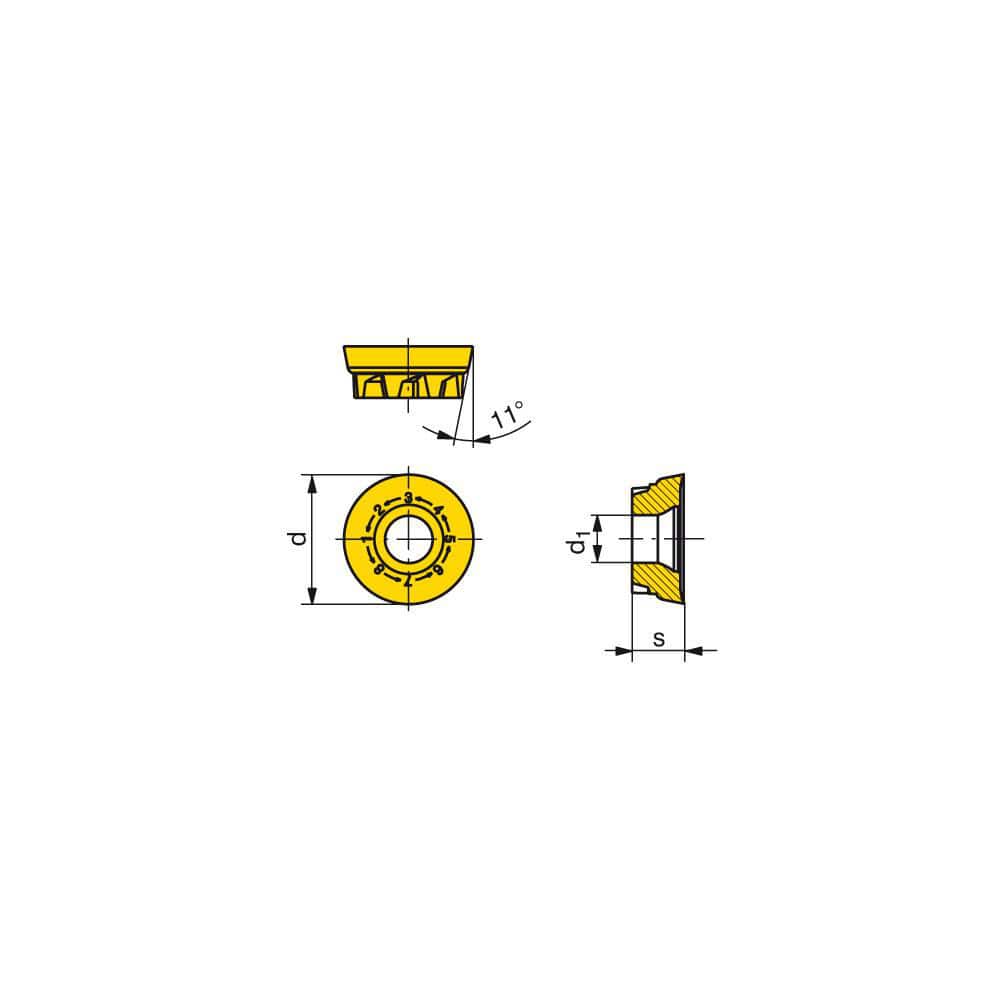

Milling Insert: RPNX 10T3M8EN-R30 CTCK215, CTCK215, Solid Carbide N/A Finish,
Item #: 75871194
Brand: Ceratizit
Model #: 51056520
Product Specifications
| Insert Style | RPNX |
| Insert Size Code | 10T3 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCK215 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Corner Radius (Decimal Inch) | 0.1969 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Series | RPNX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Number Of Cutting Edges | 4 |
| Cutting Edge Effective Length (Decimal Inch) | 0.1968 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | RPNX 10T3M8EN-R30 CTCK215 |
| Chip Breaker | R30 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
