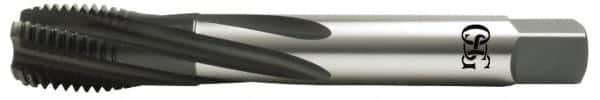

Spiral Flute Tap: 7/8-9, UNC, 4 Flute, Modified Bottoming, 2B Class of Fit, Vanadium High Speed Steel, Oxide Finish Right Hand Flute, Right Hand Thread, Series 13014
Item #: 75881748
Brand: OSG
Model #: 1301400601
Product Specifications
| Material | Vanadium High Speed Steel |
| Coating/Finish | Oxide |
| Thread Size (Inch - 0 Decimals) | 7/8-9 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Overall Length (mm) | 140.00 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 15 |
| Oversize | No |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Size (Decimal Inch) | 0.5230 |
| Flute Style | Slow |
| Material Application | Alloy Steel; Stainless Steel; Cast Iron; High Nickel Alloy; Carbon Steel |
| Series | 13014 |
| Coolant Through | No |
| Number Of Flutes | 4 |
| Class Of Fit | 2B |
