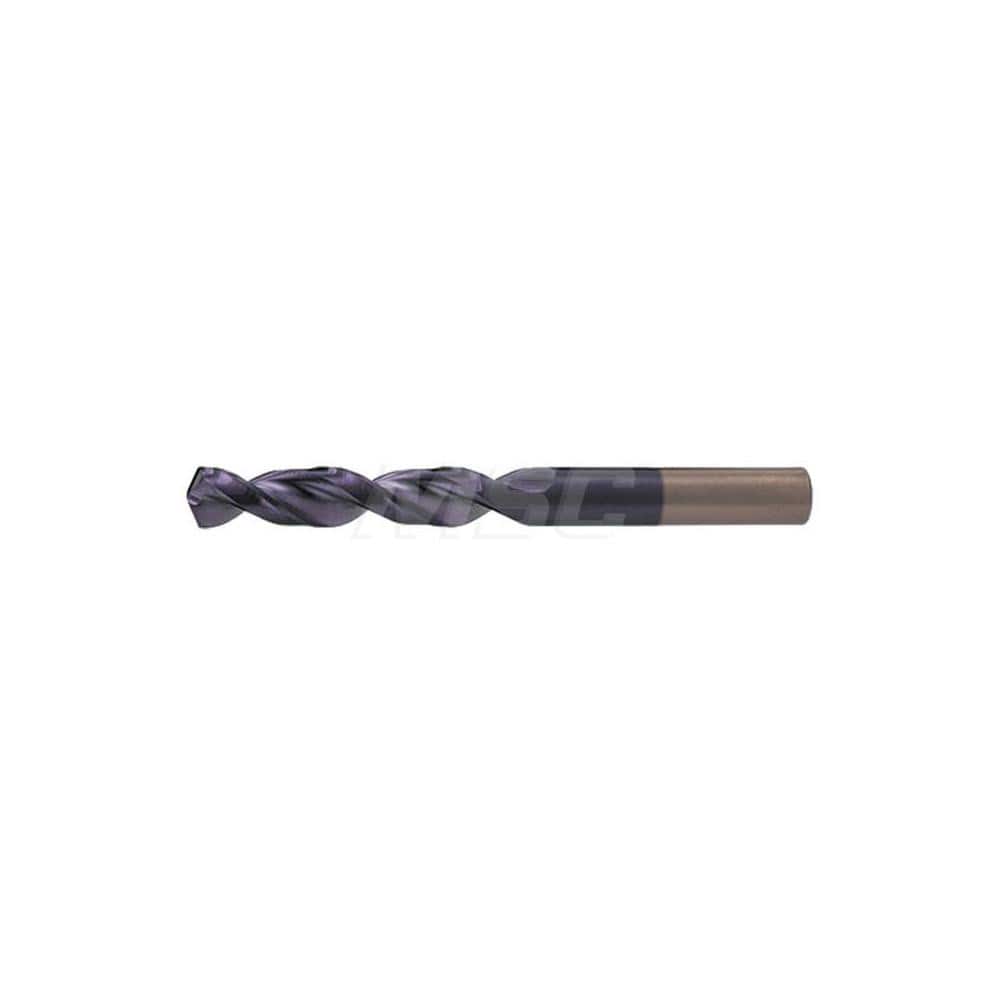

Screw Machine Length Drill Bit: 0.0781″ Dia, 135 °, Cobalt Coated, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 2175A
Item #: 75906560
Brand: Cleveland
Model #: C15051
Product Specifications
| Drill Bit Size (Inch) | 5/64 |
| Tool Material | Cobalt |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 135 |
| Flute Type | Parabolic |
| Point Type | Split |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0781 |
| Drill Bit Size (Decimal Inch) | 0.0781 |
| Overall Length (Inch) | 1-11/16 |
| Series | 2175A |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Drill Length Type | Screw Machine |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Shank Length (mm) | 25.40 |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in |
| Standards | ASME B94.11M |
| Flute Length (Inch) | 11/16 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Specification Designation | ANSI |
| Material Grade | M42 |
