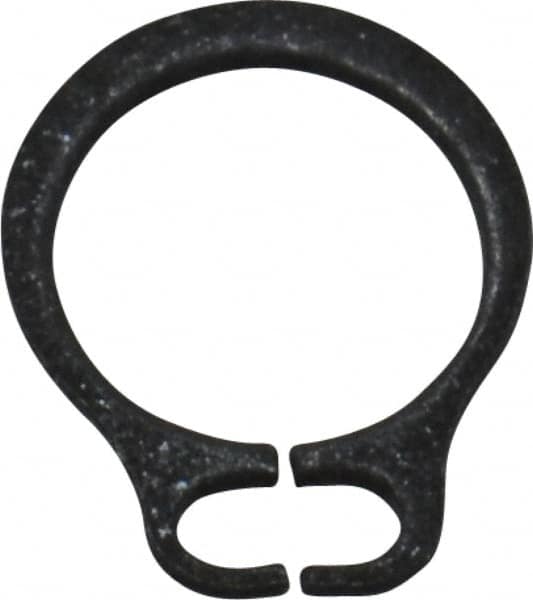

Value Collection - 0.117" Groove Diam, 1/8" Shaft Diam, Phosphate Spring Steel, Snap External Retaining Rings - 0.012" Groove Width, 0.01" Ring Thickness
Item #: 75941971
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 1/8 |
| Groove Diameter (Decimal Inch) | 0.1170 |
| Free Diameter (Decimal Inch) | 0.1120 |
| Material | Spring Steel |
| Finish/Coating | Phosphate |
| Nominal Size (Inch) | 1/8 |
| Groove Width (Decimal Inch) | 0.0120 |
| Ring Thickness (Decimal Inch) | 0.0100 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.002 |
| Ring Thickness Tolerance (Decimal Inch) | -0.001 to 0.001 |
