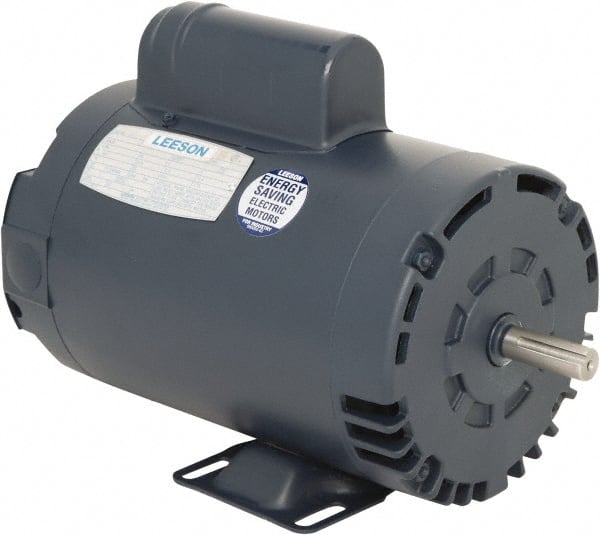

Leeson - 3 Max hp, 3,600 Max RPM, Electric AC DC Motor - 230 V Input, Single Phase, 56Y Frame, 5/8" Shaft Diam, Rigid Base Mount, ODP Enclosure
Item #: 76036359
Brand: Leeson
Model #: 110222.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase |
| Type of Enclosure | ODP |
| Maximum HorsePower | 3 |
| Minimum Horsepower | 3 |
| Name Plate RPMs | 3450 |
| Phase | Single |
| Input Voltage | 230 |
| Frame Size | 56Y |
| Full Load Amperage | 15 |
| Mount Type | Rigid Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Compressor; Pumps; Fan; Blower |
| Maximum RPM | 3600 |
| PSC Code | 6105 |
