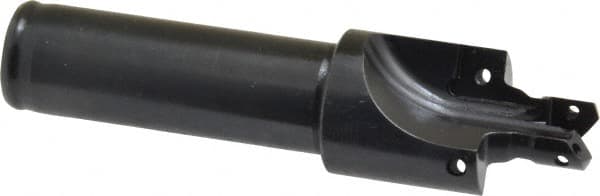

Allied Machine and Engineering - IS0 11926-1, SAE J1926-1/MS-16142 Standard, 7/16-20" Thread, 4 Tube Dash Number, 12° Porting Angle, 0.386" Pilot Diam, 5/8" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 3.402" Overall Length
Item #: 76038314
Brand: Allied Machine and Engineering
Model #: J1926-04Y-063F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | IS0 11926-1; SAE J1926-1/MS-16142 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 7/16-20 |
| Tube Dash Number | 4 |
| Pilot Diameter (Decimal Inch) | 0.3860 |
| Spotface Diameter (Decimal Inch) | 0.8410 |
| Pilot Length (Decimal Inch) | 0.5510 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | J1926-02-C3H; J1926-02-C5A |
| Porting Diameter (Decimal Inch) | 0.4900 |
| Overall Length (Decimal Inch) | 3.4020 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 12 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.5270 |
| Shank Length (Decimal Inch) | 1.8750 |
| Spotface to Shoulder Length (Decimal Inch) | 0.8960 |
| Series | AccuPort 432 |
