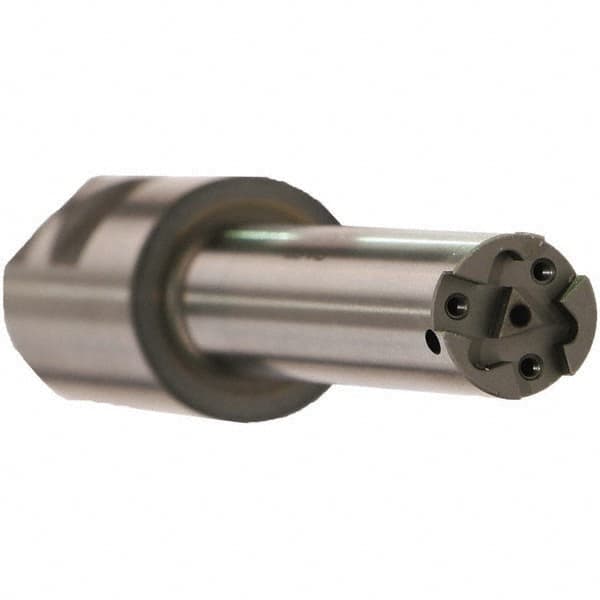

Emuge - 23.85mm Cut Diam, 80mm Max Hole Depth, 25mm Shank Diam, Internal Indexable Thread Mill - Insert Style GF6431, 3 Inserts, Toolholder Style GZ34, 138mm OAL
Item #: 76084003
Brand: Emuge
Model #: GZ341021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 23.85 |
| Cutting Diameter (Decimal Inch) | 0.9390 |
| Maximum Hole Depth (mm) | 80.00 |
| Maximum Hole Depth (Decimal Inch) | 3.1496 |
| Insert Style | GF6431 |
| Toolholder Style | GZ34 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 138.00 |
| Overall Length (Decimal Inch) | 5.4331 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
