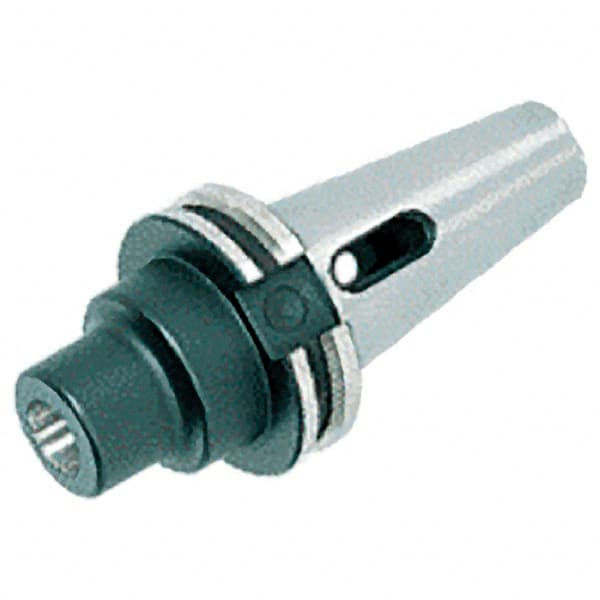

Iscar - CAT40 Outside Taper, 4MT Inside Taper, CAT to Morse Taper Adapter - 3-5/8" Projection, 2.008" Nose Diam, 0.0002" TIR
Item #: 76182625
Brand: Iscar
Model #: 4501481
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | CAT to Morse |
| Outside Taper Size | CAT40 |
| Inside Taper Size | 4MT |
| Projection (Decimal Inch) | 3.6250 |
| Projection (Inch) | 3-5/8 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 2.0080 |
| TIR (Decimal Inch) | 0.0002 |
| Retention Knob Thread Size | 5/8-11 |
