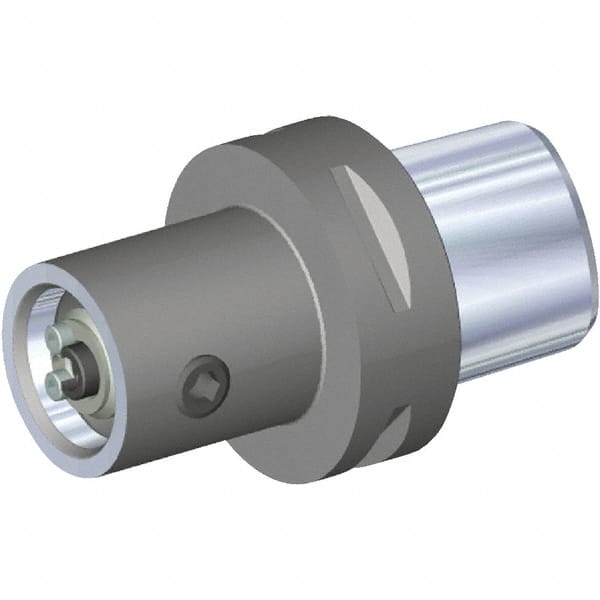

Kennametal - PSC80 Outside Modular Connection, KM50TS Inside Modular Connection, PSC to KM Taper Adapter - 100.08mm Projection, 50.04mm Nose Diam, 148.01mm OAL, Through Coolant
Item #: 76235100
Brand: Kennametal
Model #: 3874897
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | PSC to KM |
| Outside Modular Connection Size | PSC80 |
| Inside Modular Connection Size | KM50TS |
| Projection (Decimal Inch) | 3.9400 |
| Projection (mm) | 100.08 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.9700 |
| Nose Diameter (mm) | 50.04 |
| Overall Length (mm) | 148.01 |
| Overall Length (Decimal Inch) | 5.8270 |
