Kennametal - M3x0.50 Metric 3 Flute 6HX Modified Bottoming Spiral Flute Tap - Powdered Metal, TiN/CrC/C Finish, 56mm OAL, Right Hand Flute, Right Hand Thread, Series T630
Item #: 76269125
Brand: Kennametal
Model #: 3868825
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming chamfers are similar to bottoming chamfers, but they are longer and have more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.

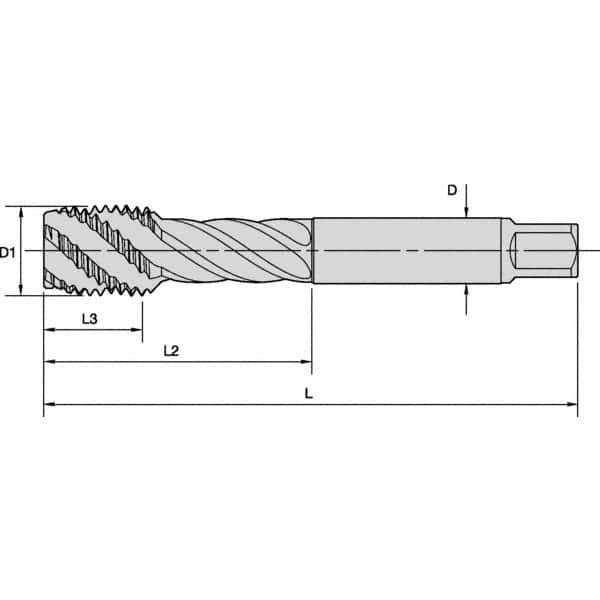

| Product Specifications | |
|---|---|
| Thread Size (mm) | M3x0.50 |
| Chamfer | Modified Bottoming |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiN/CrC/C |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.3150 |
| Thread Length (mm) | 8.00 |
| Flute Type | Fast Spiral |
| Series/List | T630 |
| Neck Length (Decimal Inch) | 0.3937 |
| Tapping Depth (Decimal Inch) | 0.7087 |
| Tapping Depth (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
| Material Application | Non-Ferrous Materials; Stainless Steel |
