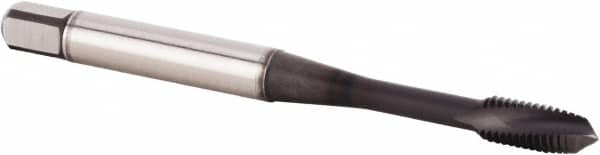

Kennametal - M3x0.50 Metric 3 Flute 6HX Plug Spiral Flute Tap - Powdered Metal, TiN/CrC/C Finish, 56mm OAL, Left Hand Flute, Right Hand Thread, Series T620
Item #: 76270958
Brand: Kennametal
Model #: 3868079
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3x0.50 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiN/CrC/C |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Helix Angle | 15 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.3150 |
| Thread Length (mm) | 8.00 |
| Flute Type | Slow Spiral |
| Series/List | T620 |
| Neck Length (Decimal Inch) | 0.3937 |
| Tapping Depth (Decimal Inch) | 0.7087 |
| Tapping Depth (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
| Material Application | Non-Ferrous Materials; Stainless Steel |
