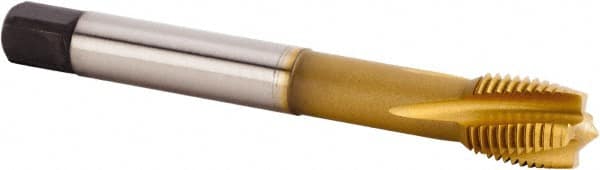

Kennametal - M8x1.00 Metric Fine 3 Flute 6HX Plug Spiral Flute Tap - Powdered Metal, TiCN/TiN Finish, 90mm OAL, Left Hand Flute, Right Hand Thread, Series T620
Item #: 76271071
Brand: Kennametal
Model #: 3868215
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Slow Spiral Flutes with 8-20 degree angles are used for tough materials like high nickel alloys, titanium and some series of stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.00 |
| Chamfer | Plug |
| Class of Fit | 6HX |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | TiCN/TiN |
| Thread Direction | Right Hand |
| Flute Direction | Left Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.5433 |
| Overall Length (mm) | 90.00 |
| Helix Angle | 15 |
| Thread Standard | Metric Fine |
| Thread Length (Decimal Inch) | 0.5118 |
| Thread Length (mm) | 13.00 |
| Flute Type | Slow Spiral |
| Series/List | T620 |
| Neck Length (Decimal Inch) | 0.8661 |
| Tapping Depth (Decimal Inch) | 1.3780 |
| Tapping Depth (mm) | 35.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Material Application | Cast Iron; Steel |
