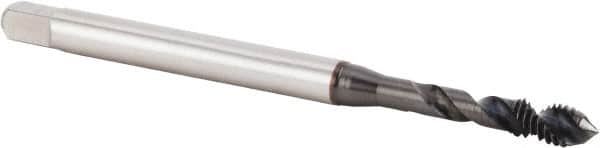

Kennametal - M3x0.50 Metric 2 Flute 6H Plug Spiral Flute Tap - High Speed Steel, Diamond-Like Carbon (DLC) Finish, 56mm OAL, Right Hand Flute, Right Hand Thread, Series T680
Item #: 76271964
Brand: Kennametal
Model #: 4159939
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M3x0.50 |
| Chamfer | Plug |
| Class of Fit | 6H |
| Number of Flutes | 2 |
| Material | High Speed Steel |
| Finish/Coating | Diamond-Like Carbon (DLC) |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (Decimal Inch) | 2.2047 |
| Overall Length (mm) | 56.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Thread Length (Decimal Inch) | 0.2362 |
| Thread Length (mm) | 6.00 |
| Flute Type | Fast Spiral |
| Series/List | T680 |
| Neck Length (Decimal Inch) | 0.4720 |
| Tapping Depth (Decimal Inch) | 0.7087 |
| Tapping Depth (mm) | 18.00 |
| Shank Diameter (Decimal Inch) | 0.1378 |
| Shank Diameter (mm) | 3.50 |
| Material Application | Non-Ferrous Materials |
