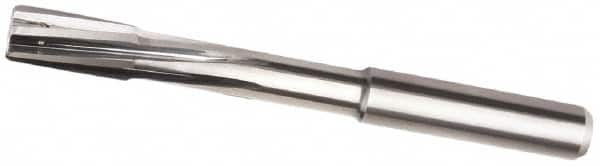

Chucking Reamer: 0.3937″ Dia, 4.0551″ OAL, 0.7874″ Flute Length, Straight Shank, Solid Carbide 6 Flute, RH
Item #: 76279959
Brand: Kennametal
Model #: 3668915
Product Specifications
| Reamer Diameter Range (Decimal Inch) | 0.3500 - 0.3999 |
| Reamer Diameter (Decimal Inch) | 0.3937 |
| Reamer Diameter (mm) | 10.00 |
| Tool Material | Solid Carbide |
| Shank Type | Straight |
| Flute Type | Helical |
| Spiral Direction | Right Hand |
| Coating/Finish | TiAlN |
| Number of Flutes | 6 |
| Overall Length (mm) | 103.00 |
| Overall Length (Inch) | 4.0551 |
| Minimum Shank Diameter (Decimal Inch) | 0.3937 |
| Dowel Pin Reamer | No |
| Maximum Shank Diameter (mm) | 10.00 |
| Over/Under Size Reamer | No |
| Flute Length (mm) | 20.00 |
| Maximum Shank Diameter (Decimal Inch - 4 Decimals) | 0.3937 |
| Cutting Direction | Right Hand |
