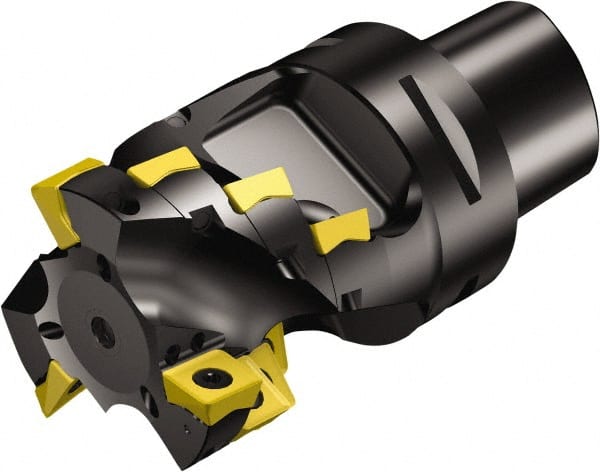

Sandvik Coromant - 3 Inserts, 2" Cut Diam, 2.4803" Arbor Diam, 4.1339" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 5.9055" High, 690-100508M-E-SL & 690-100510M-P-SL Insert Compatibility, Through Coolant, Series CoroMill 690
Item #: 76310630
Brand: Sandvik Coromant
Model #: 5723636
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 2.4803 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 5.9055 |
| Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Series | CoroMill 690 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 4.1339 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | A690 |
| Maximum RPM | 5000 |
| Cutting Edge Length (Decimal Inch) | 4.1339 |
| ISO Number | A690051C610105H |
| Complete Insert Compatibility | 690-100508M-E-SL; 690-100510M-P-SL |
| Toolholder Material | Steel |
