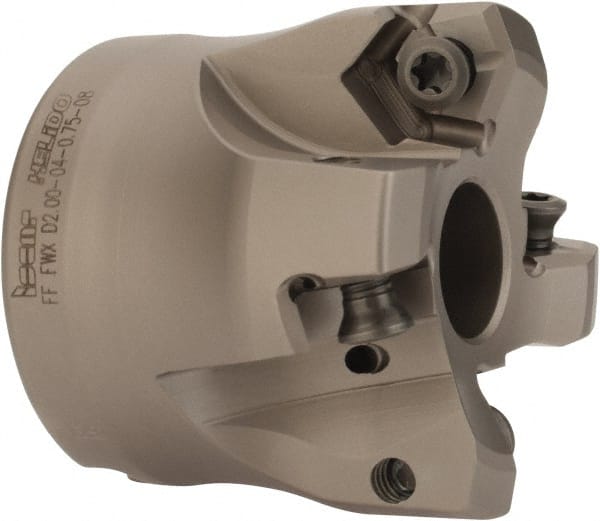

Iscar - 4 Inserts, 1.37" Cutter Diam, 0.08" Max Depth of Cut, Indexable High-Feed Face Mill - 3/4" Arbor Hole Diam, 1-3/4" High, FF FWX-08 Toolholder, H600 WXCU 08 Inserts, Series FF FWX
Item #: 76377746
Brand: Iscar
Model #: 3105246
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.3700 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (Decimal Inch) | 1.7500 |
| Series | FF FWX |
| Cutter Style | FF FWX-08 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | H600 WXCU 08 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Maximum Body Diameter (Decimal Inch) | 2.0000 |
| Through Coolant | Yes |
| Manufacturers Catalog Number | FF FWX D2.00-04-0.75-08 |
