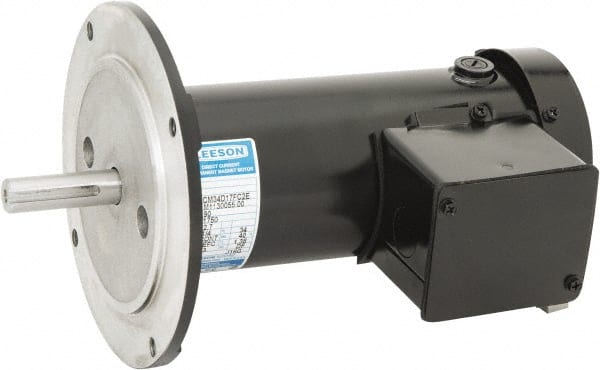

Leeson - 1/4 Max hp, 1,750 Max RPM, Permanent Magnet DC Motors Electric AC DC Motor - 115 V Input, 34G56C Frame, C-Face Mount, TEFC Enclosure
Item #: 76427707
Brand: Leeson
Model #: M1130055.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Permanent Magnet DC Motors |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 1/4 |
| Minimum Horsepower | 1/4 |
| Phase | None |
| Input Voltage | 115 |
| Frame Size | 34G56C |
| Full Load Amperage | 2.7 |
| Mount Type | C-Face |
| Frame Material | Steel |
| Applications | General Purpose |
| Maximum RPM | 1750 |
| Arm Volts DC | 90 |
| PSC Code | 6105 |
