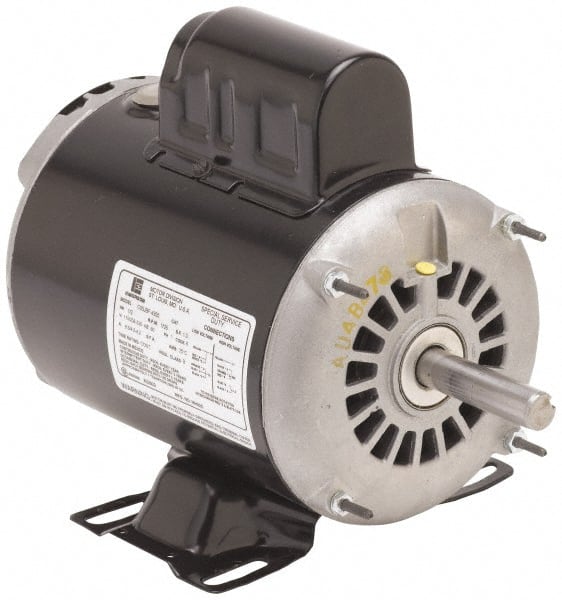

US Motors - 1.5 hp, ODP Enclosure, No Thermal Protection, 1,725 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 145T Frame, Rigid Mount, 1 Speed, Ball Bearings, 20.4/10.2 Full Load Amps, B Class Insulation, Reversible
Item #: 76506690
Brand: US Motors
Model #: D32C2J14
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | ODP |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 145T |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 20.4/10.2 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 12.8800 |
| Shaft Diameter x Length (Inch) | 7/8 x 2-1/4 |
| Full Load Efficiency Rating | 75.8 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
