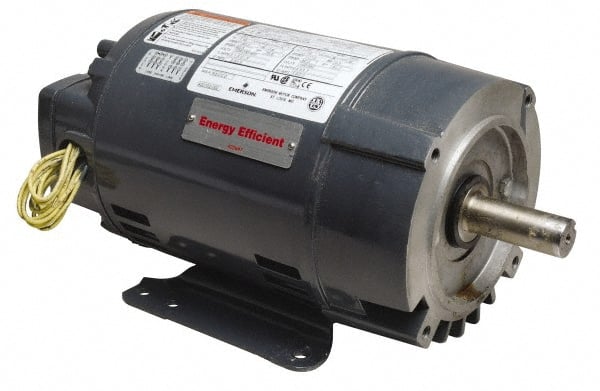

US Motors - 1 hp, ODP Enclosure, No Thermal Protection, 1,725 RPM, 208-220/440 Volt, 60/50 Hz, Three Phase Energy Efficient Motor - Size 56C Frame, C-Face Mount, 1 Speed, Ball Bearings, 3.6-3.6/1.8 Full Load Amps, A Class Insulation, Reversible
Item #: 76506823
Brand: US Motors
Model #: D1S2AHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Energy Efficient |
| Type of Enclosure | ODP |
| Horsepower | 1 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 208-220/440 |
| Frequency Hz | 60/50 |
| Frame Size | 56C |
| Mount Type | C-Face |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 3.6-3.6/1.8 |
| Insulation Class | A |
| Frame Material | Steel |
| Overall Length (Decimal Inch) | 11.1000 |
| Shaft Diameter x Length (Inch) | 5/8 x 2-1/16 |
| Full Load Efficiency Rating | 82.4 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
