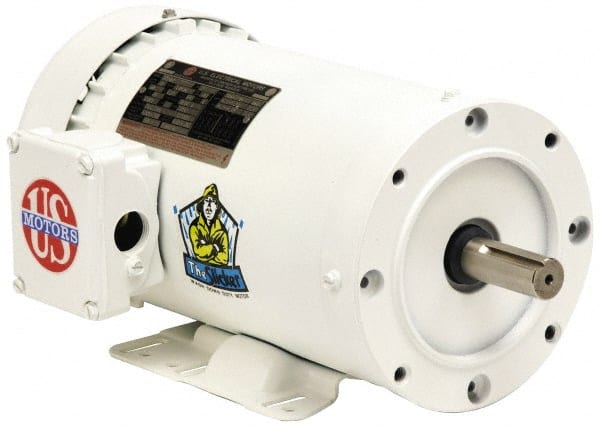

US Motors - 1.5 hp, TEFC Enclosure, No Thermal Protection, 1,725 RPM, 115/230 Volt, 60 Hz, Single Phase Capacitor Start-Cap Run Motor - Size 56HC Frame, C-Face/Base Mount, 1 Speed, Ball Bearings, 14.0/7.0 Full Load Amps, F Class Insulation, Reversible
Item #: 76507425
Brand: US Motors
Model #: WD32C2JHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Capacitor Start-Cap Run |
| Type of Enclosure | TEFC |
| Horsepower | 1-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1725 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 56HC |
| Mount Type | C-Face/Base |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | Washdown |
| Full Load Amperage | 14.0/7.0 |
| Insulation Class | F |
| Overall Length (Decimal Inch) | 13.5700 |
| Shaft Diameter x Length (Inch) | 5/8 x 2-1/16 |
| Full Load Efficiency Rating | 83.5 |
| Service Factor Rating | 1.15 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
