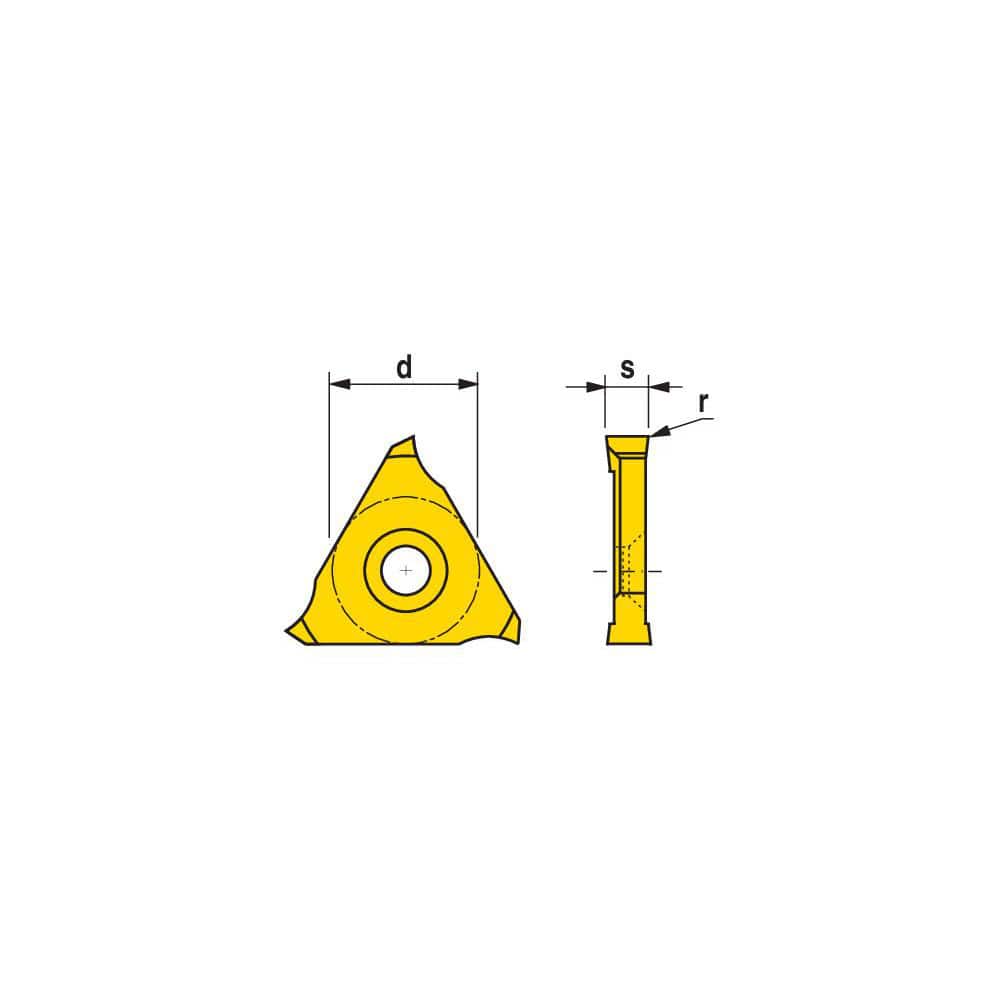

Milling Insert: TXR 224302 CWK10, CTCM235, Solid Carbide N/A Finish,
Item #: 76529403
Brand: Ceratizit
Model #: 50381543
Product Specifications
| Insert Style | TX-R |
| Insert Size Code | 2243 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CTCM235 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Insert Hand | Right Hand |
| Series | TX-R |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | TXR 224302 CWK10 |
| Chip Breaker | None |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1874 |
