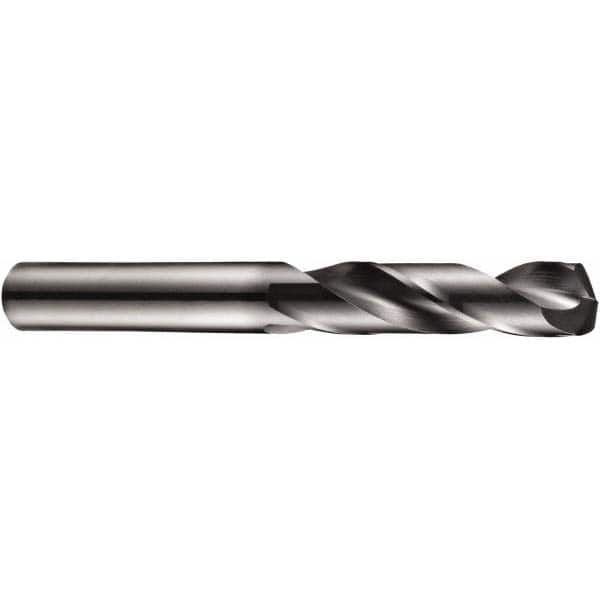

Screw Machine Length Drill Bit: 0.7031″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series R457
Item #: 76534742
Brand: DORMER
Model #: 5980355
Product Specifications
| Drill Bit Size (Inch) | 45/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet; Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Drill Bit Size (Decimal Inch) | 0.7031 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Shank Diameter (mm) | 18.00 |
| Series | R457 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (mm) | 73.00 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Specification Designation | DIN |
