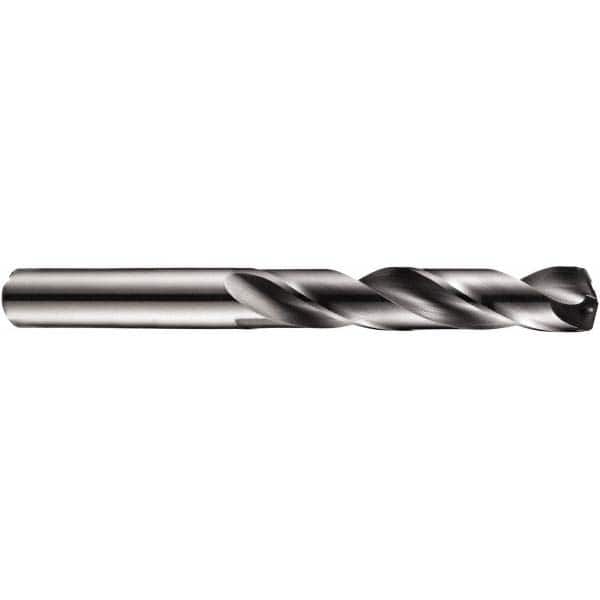

DORMER - 13mm 140° Solid Carbide Jobber Drill
Item #: 76543941
Brand: DORMER
Model #: 0613979
Product Specifications
| Drill Bit Size (mm) | 13.00 |
| Drill Bit Size (Decimal Inch) | 0.5118 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Coolant Through |
| Flute Length (mm) | 76.00 |
| Overall Length (mm) | 124.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Four Facet, Split Point |
| Shank Diameter (mm) | 14.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 45.00 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535HA (Shank); DIN 6537L |
| Drill Bit Grade | High Performance |
| Series/List | R453 |
