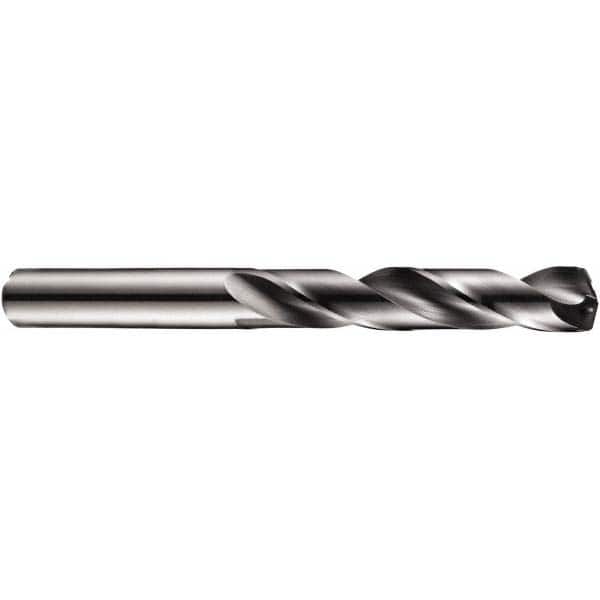

Jobber Length Drill Bit: 0.625″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 76544493
Brand: DORMER
Model #: 5978955
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.6250 |
| Drill Bit Size (Inch) | 5/8 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiAlN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Four Facet; Split |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Overall Length (mm) | 133.00 |
| Flute Length (mm) | 82.00 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 16.00 |
| Shank Length (mm) | 48.00 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
| Specification Designation | DIN |
