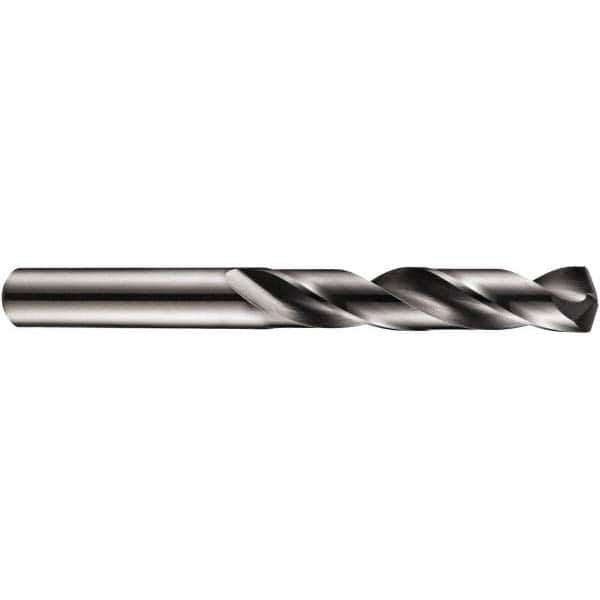

DORMER - 5.5mm 140° Solid Carbide Jobber Drill
Item #: 76545441
Brand: DORMER
Model #: 0614532
Product Specifications
| Drill Bit Size (mm) | 5.50 |
| Drill Bit Size (Decimal Inch) | 0.2165 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 44.00 |
| Overall Length (mm) | 82.00 |
| Flute Length x Diameter Ratio | 5xD |
| Point Type | Four Facet, Split Point |
| Shank Diameter (mm) | 6.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 36.00 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 6535HA (Shank); DIN 6537L |
| Drill Bit Grade | High Performance |
| Series/List | R454 |
