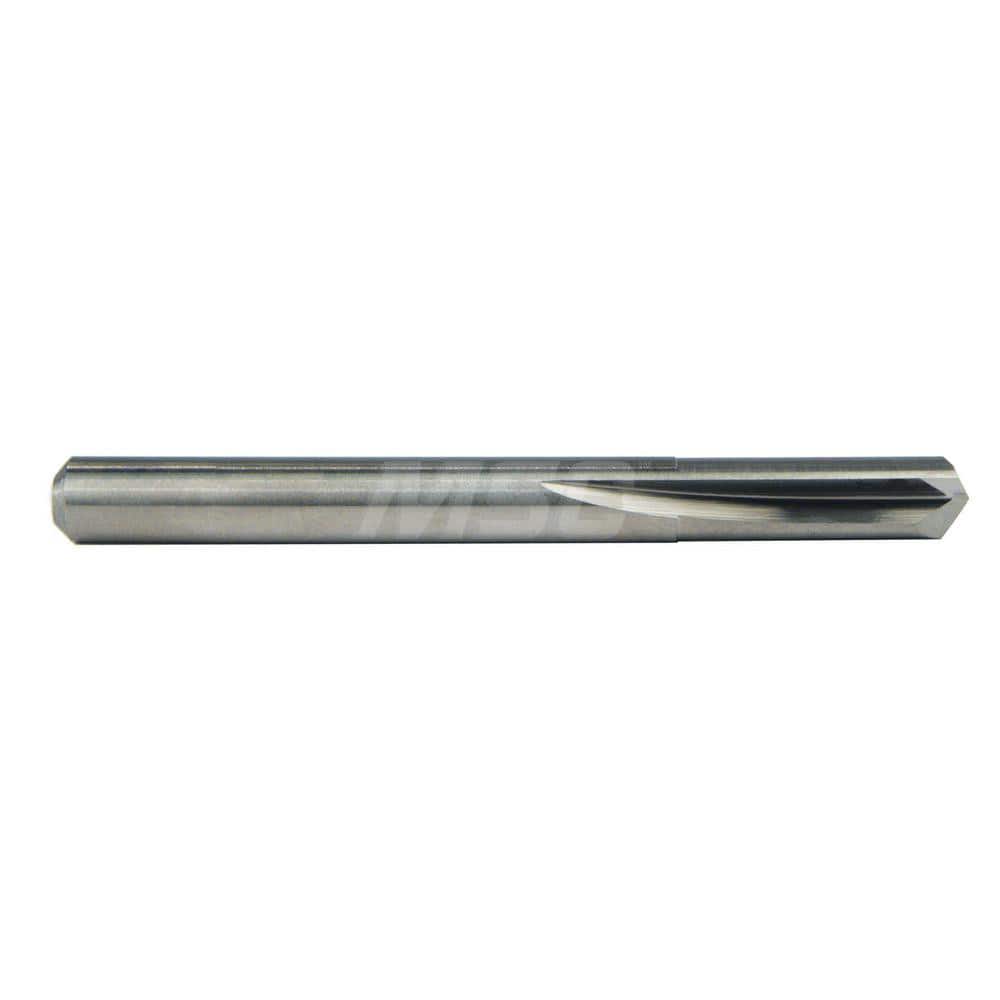

Die Drill Bit: 0.7480″ Dia, 135 °, Solid Carbide Uncoated, Series 200
Item #: 76553262
Brand: M.A. Ford?
Model #: 20074800
Product Specifications
| Drill Bit Type | Straight-Flute |
| Drill Bit Size (mm) | 19.00 |
| Tool Material | Carbide |
| Coating/Finish | Uncoated |
| Flute Length (mm) | 38.00 |
| Drill Point Angle | 135 |
| Overall Length (mm) | 102.00 |
| Shank Diameter (mm) | 19.00 |
| Coolant Through | No |
| Drill Bit Size (Decimal Inch) | 0.7480 |
| Series | 200 |
| Number Of Flutes | 2 |
| Point Type | Split |
| Cutting Direction | Right Hand |
| Tool Application | Holemaking |
| Web Thinning | Web-Thinned |
| Drill Bit Diameter Tolerance | +0.0000 to -0.0005 in; +0.000 to -0.013 mm |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Secondary Workpiece Material | Austenitic Stainless Steel; Alloy Steel; Stainless Steel; Glass; Titanium; Ceramic; High Temperature Alloy; Hardened Materials |
| Standards | DIN |
| Shank Length (mm) | 64.00 |
