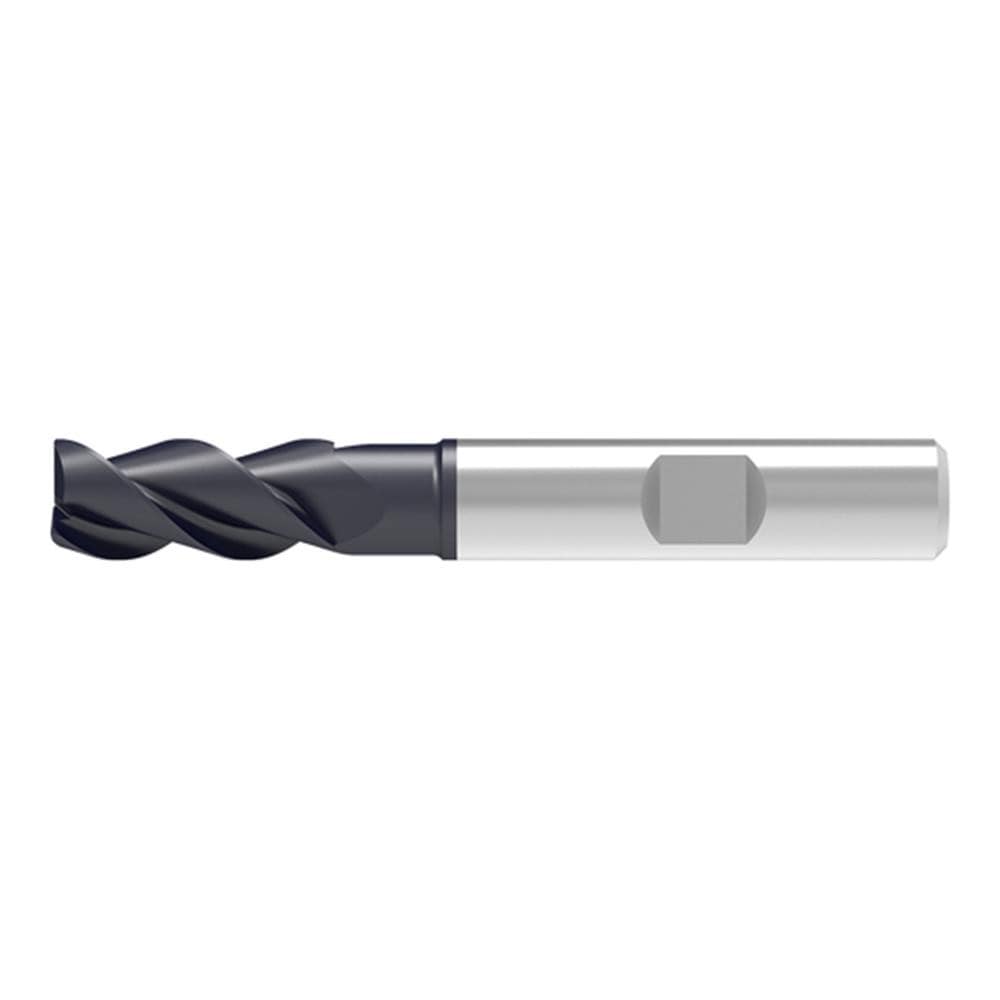

Corner Chamfer End Mill: 7.00 mm Dia, 19.00 mm LOC, 3 Flute, 0.12 mm Chamfer Width, Solid Carbide
Item #: 06190540
Brand: WNT
Model #: 5293307000
Product Specifications
| Mill Diameter (mm) | 7.00 |
| Number Of Flutes | 3 |
| Length of Cut (mm) | 19.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | DPX72S |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.12 |
| Overall Length (mm) | 70.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Long |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 8.00 |
| Neck Diameter (mm) | 6.700 |
| UNSPSC Code | 23241614 |
| Series | 52933 |
