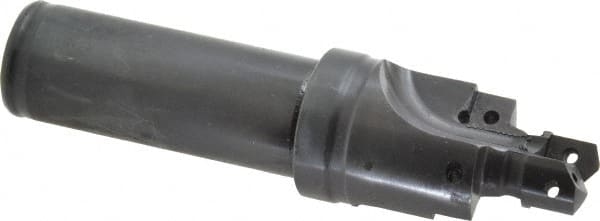

Allied Machine and Engineering - IS0 11926-1, SAE J1926-1/MS-16142 Standard, 9/16-18" Thread, 6 Tube Dash Number, 12° Porting Angle, 0.512" Pilot Diam, 3/4" Shank Diam, Indexable Spade Blade Insert Porting Tool - 2 Porting Inserts, 3.826" Overall Length
Item #: 76612217
Brand: Allied Machine and Engineering
Model #: J1926-060-075F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Port Standard Designation | IS0 11926-1; SAE J1926-1/MS-16142 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | 9/16-18 |
| Tube Dash Number | 6 |
| Pilot Diameter (Decimal Inch) | 0.5120 |
| Spotface Diameter (Decimal Inch) | 0.9690 |
| Pilot Length (Decimal Inch) | 0.5120 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | J1926-02-C3H; J1926-02-C5A |
| Porting Diameter (Decimal Inch) | 0.6180 |
| Overall Length (Decimal Inch) | 3.8260 |
| Through Coolant | NonThrough Coolant |
| Porting Angle | 12 |
| Porting Angle Length (Decimal Inch) | 0.1060 |
| Head Length (Decimal Inch) | 1.8570 |
| Shank Length (Decimal Inch) | 1.9690 |
| Spotface to Shoulder Length (Decimal Inch) | 1.1440 |
| Series | AccuPort 432 |
