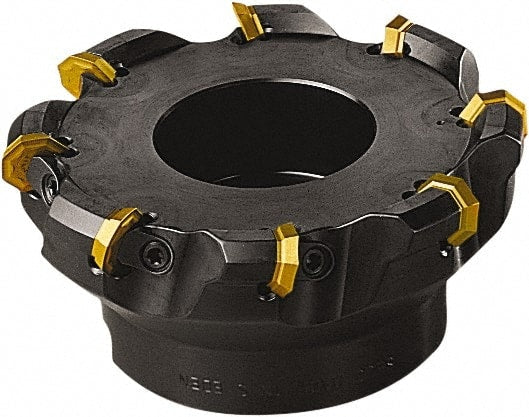

Seco - 2.95" Cut Diam, 3/4" Arbor Hole, 0.197" Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 4 Inserts, OFE. 070405 Insert, Right Hand Cut, 4 Flutes, Series R220
Item #: 76736115
Brand: Seco
Model #: 03262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.9500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | OFE. 070405 |
| Series | R220 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Wedge |
| Cutter Style | R220.43 |
| Number of Flutes | 4 |
| Keyway Width (Decimal Inch) | 0.3200 |
| Maximum RPM | 6000 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
