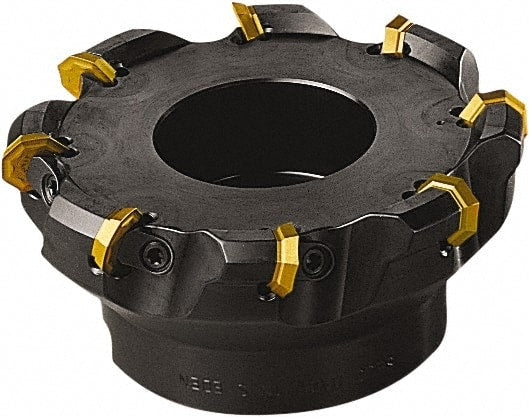

Seco - 5.39" Cut Diam, 1-1/2" Arbor Hole, 0.197" Max Depth of Cut, 43° Indexable Chamfer & Angle Face Mill - 8 Inserts, OFE. 070405 Insert, Right Hand Cut, 8 Flutes, Series R220.43
Item #: 76736172
Brand: Seco
Model #: 03273
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 5.3900 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 43 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | OFE. 070405 |
| Series | R220.43 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Wedge |
| Cutter Style | R220.43 |
| Number of Flutes | 8 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 4000 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
