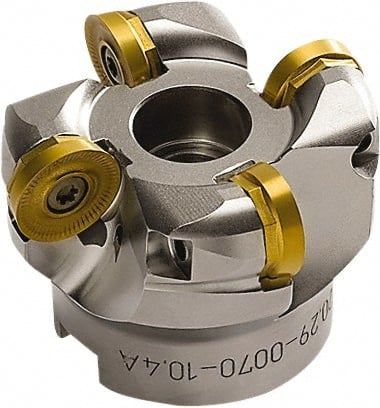

Seco - 3" Cut Diam, 0.394" Max Depth, 1" Arbor Hole, 4 Inserts, RP.. 2006 Insert Style, Indexable Copy Face Mill - 5,100 Max RPM, 2" High, Through Coolant
Item #: 76753078
Brand: Seco
Model #: 87698
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Number of Cutter Inserts | 4 |
| Insert Compatibility | RP.. 2006 |
| Through Coolant | Yes |
| Maximum RPM | 5100 |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 20.02 |
| Insert Inscribed Circle (Decimal Inch) | 0.7880 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RPHT 2006M0-E10; RPHT 2006M0T-ME12; RPKT 2006M0T-M15; RPKT 2006M0T-M20; RPKW 2006M0-MD10; RPKW 2006M0T-MD22; RPKX 2006M0T-ME12 |
