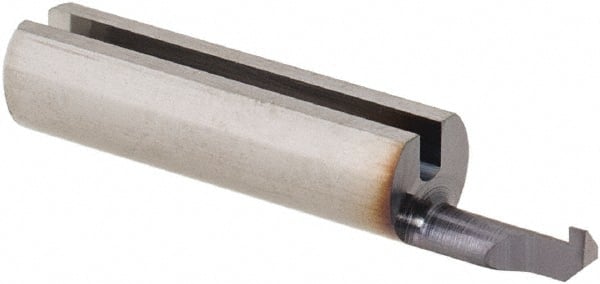

Iscar - 0.51mm Groove Width, 2.01mm Min Hole Diam, 5mm Max Hole Depth, Grooving Grooving Tool - 0.41mm Projection, 0.551" Shank Length, 19mm OAL, Solid Carbide, TiN/TiAlN Finish
Item #: 76781954
Brand: Iscar
Model #: 6403942
Exact Tooling IR#: 04
Features and Benefits
Grooving tools are used for recessing or undercutting a workpiece.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics, and other tough-to-machine materials.
TiN/TiALN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Grooving Tool Type | Grooving |
| Material | Solid Carbide |
| Shank Diameter (Decimal Inch) | 0.1570 |
| Shank Diameter (mm) | 3.99 |
| Groove Width (Decimal Inch) | 0.0200 |
| Groove Width (mm) | 0.51 |
| Projection (Decimal Inch) | 0.0160 |
| Projection (mm) | 0.41 |
| Minimum Hole Diameter (Decimal Inch) | 0.0790 |
| Minimum Hole Diameter (mm) | 2.01 |
| Maximum Hole Depth (Decimal Inch) | 0.1970 |
| Maximum Hole Depth (mm) | 5.00 |
| Overall Length (Decimal Inch) | 0.7480 |
| Overall Length (mm) | 19.00 |
| Finish/Coating | TiN/TiAlN |
| Shank Length (Decimal Inch) | 0.5510 |
| Manufacturer Grade | IC908 |
| Material Grade | Submicron |
