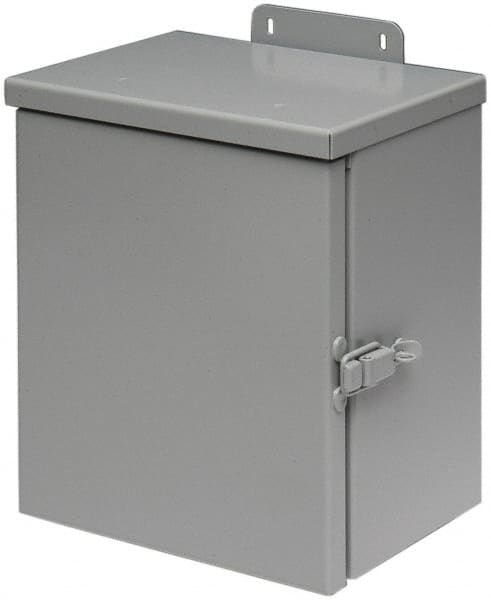

Cooper B-Line - Steel Junction Box Enclosure Hinge Flat Cover - NEMA 3R, 24" Wide x 24" High x 8" Deep, Rainproof
Item #: 76805399
Brand: Cooper B-Line
Model #: 24248RHC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Enclosure Type | Junction Box Enclosure |
| Cover Type | Hinge Flat Cover |
| Enclosure Material | Steel |
| NEMA Rating | 3R |
| Overall Width (Inch) | 24 |
| Overall Width (Decimal Inch) | 24 |
| Overall Height (Inch) | 24 |
| Overall Height (Decimal Inch) | 24 |
| Overall Depth (Inch) | 8 |
| Overall Depth (Decimal Inch) | 8 |
| Cover Color | Gray |
| Finish/Coating | Polyester Powder Coat Finish |
| Material Gauge | 14 |
| Resistance Features | Rainproof |
| Includes | 0.375-16 Collar Studs; Captive Screws; Continuous Hinge; External Mounting Feet; Padlock Hasp |
| Standards Met | ANSI 61; CSA C22.2 No. 40 Certified; UL Listed 50 |
| Overall Width (mm) | 610 |
| Overall Height (mm) | 610 |
| Overall Depth (mm) | 203 |
