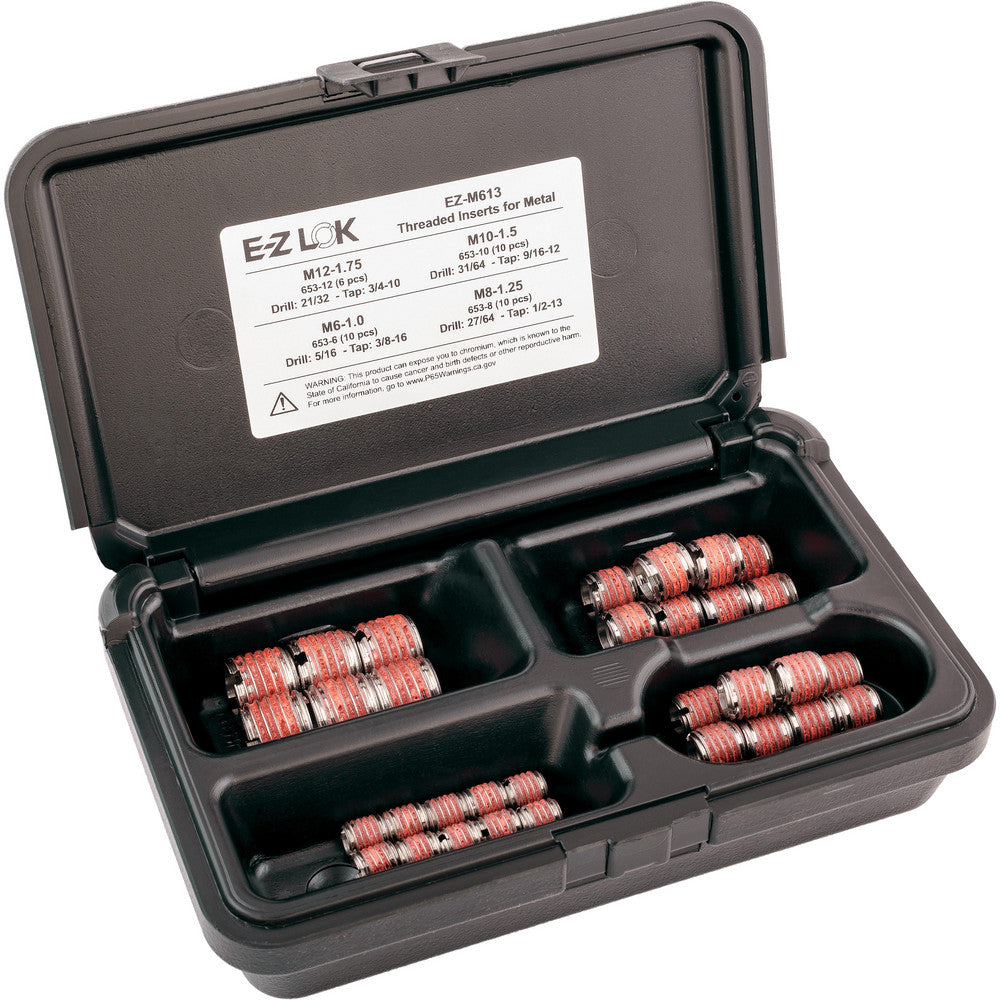

Thread Repair Kits; Kit Type: Threaded Insert; Insert Thread Size (mm): M6x1, M10x1.5, M12x1.75, M8x1.25; Includes Drill: No; Includes Tap: No; Includes Installation Tool: No; Includes Tang Removal Tool: No
Item #: 04031639
Brand: E-Z LOK
Model #: EZ-M613
Product Specifications
| Kit Type | Threaded Insert |
| Insert Thread Size (mm) | M6x1; M10x1.5; M12x1.75; M8x1.25 |
| Includes Drill | No |
| Includes Tap | No |
| Includes Installation Tool | No |
| Includes Tang Removal Tool | No |
| Insert Length (Decimal Inch) | 0.5120; 0.4720; 0.3940; 0.6690 |
| External Thread Size (Inch) | 1/2-13; 3/8-16; 9/16-12; 3/4-10 |
| Number Of Pieces | 36 |
| Thread Standard | Metric |
| Insert Material | Stainless Steel |
| Installation Tool Part Number | 500-3; 500-5; 500-4; 500-6 |
| Drill Sizes (Inch) | 21/32;27/64;31/64;5/16 |
| Internal Thread Sizes Included (mm) | M6x1; M10x1.5; M12x1.75; M8x1.25 |
| Kit Includes | (10) M6x1 Inserts; (10) M8x1.25 Inserts; (10) M10x1.5 Inserts; (6) M12x1.75 Inserts |
| Number Of Inserts | 36 |
| Shortest Insert Length (Decimal Inch) | 0.3940 |
| Longest Insert Length (Decimal Inch) | 0.6690 |
| UNSPSC Code | 27112810 |
