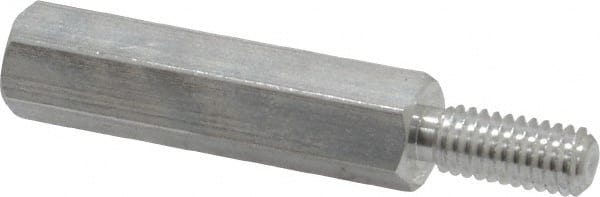

Electro Hardware - M4x0.70, 33.53mm OAL, 6mm Across Flats, Aluminum Hex Male/Female Circuit Board Standoffs - 11.1mm Thread Depth, 24mm Body Length, Uncoated
Item #: 77122406
Brand: Electro Hardware
Model #: MMF1839M06F16M4
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Aluminum |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 33.53 |
| Thread Size | M4x0.70 |
| Width Across Flats (mm) | 6.00 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 24.00 |
| Thread Length (mm) | 9.53 |
| Thread Depth (mm) | 11.10 |
| Length Tolerance (mm) | -0.150 to 0.150 |
| Material Grade | T-3 |
| Fastener Standard | QQ-A-225A Comp 2 |
