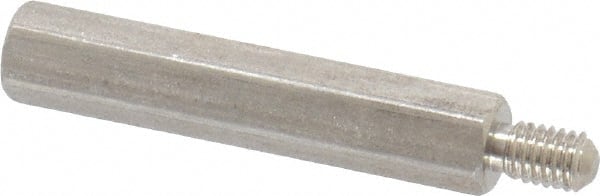

Electro Hardware - M3x0.50, 28.76mm OAL, 4.5mm Across Flats, Stainless Steel Hex Male/Female Circuit Board Standoffs - 6.4mm Thread Depth, 24mm Body Length, Uncoated
Item #: 77122943
Brand: Electro Hardware
Model #: MMF1339M09F16M3
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Stainless Steel |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 28.76 |
| Thread Size | M3x0.50 |
| Width Across Flats (mm) | 4.50 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 24.00 |
| Thread Length (mm) | 4.76 |
| Thread Depth (mm) | 6.40 |
| Length Tolerance (mm) | -0.150 to 0.150 |
| Material Grade | Grade 303 |
| Fastener Standard | QQ-S-763 |
