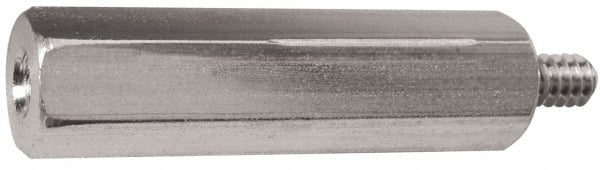

Electro Hardware - M4x0.70, 30.53mm OAL, 6mm Across Flats, Stainless Steel Hex Male/Female Circuit Board Standoffs - 11.1mm Thread Depth, 21mm Body Length, Uncoated
Item #: 77123644
Brand: Electro Hardware
Model #: MMF1833M09F16M4
Exact Tooling IR#: 04
Features and Benefits
Circuit board standoffs with male/female threads have one externally threaded end and one internally threaded end. The female end accepts male fasteners or other standoffs.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Thread Type | Male/Female |
| Material | Stainless Steel |
| System of Measurement | Metric |
| Body Shape | Hex |
| Overall Length (mm) | 30.53 |
| Thread Size | M4x0.70 |
| Width Across Flats (mm) | 6.00 |
| Finish/Coating | Uncoated |
| Body Length (mm) | 21.00 |
| Thread Length (mm) | 9.53 |
| Thread Depth (mm) | 11.10 |
| Length Tolerance (mm) | -0.150 to 0.150 |
| Material Grade | Grade 303 |
| Fastener Standard | QQ-S-763 |
