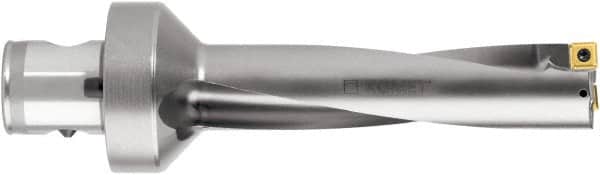

Komet - 155mm Max Drill Depth, 5xD, 30.9mm Diam, Indexable Insert Drill - 2 Inserts, ABS 63 Modular Connection Shank
Item #: 77355352
Brand: Komet
Model #: U4563090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U45 |
| Drill Diameter (mm) | 30.90 |
| Drill Diameter (Decimal Inch) | 1.2165 |
| Maximum Drill Depth (mm) | 155.00 |
| Maximum Drill Depth (Decimal Inch) | 6.1024 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2362 |
| Maximum Drill Diameter (mm) | 31.40 |
| Overall Length/Projection (mm) | 194.00 |
| Overall Length/Projection (Decimal Inch) | 7.6378 |
| Insert Compatibility | SOGX 100408 |
| Body Length (Decimal Inch) | 6.1024 |
| Body Length (mm) | 155.00 |
| Series | KUB Pentron |
