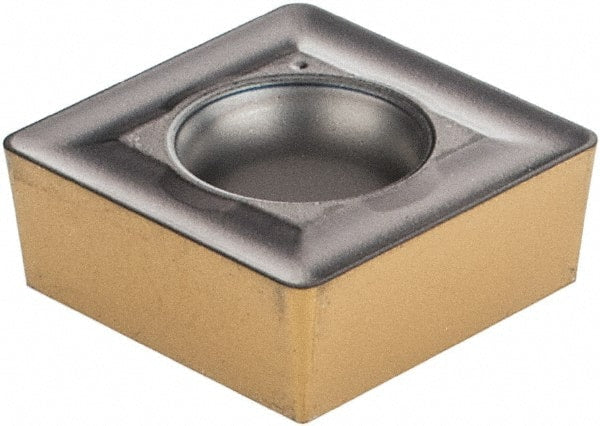

Iscar - SCMT432 Grade IC807 Carbide Turning Insert - TiAlN Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 77404499
Brand: Iscar
Model #: 5550407
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN |
| Material Grade | Submicron |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Primary Workpiece Material | S; M; P |
| Included Angle | 90 |
| Series | Isoturn |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Insert Holding Method | Screw |
| Shape | Square |
