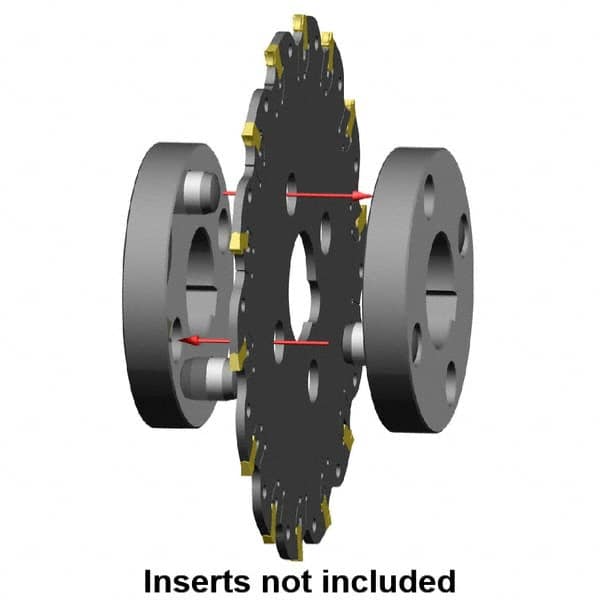

Kennametal - Arbor Hole Connection, 1/8" Cutting Width, 5/8" Depth of Cut, 2-1/2" Cutter Diam, 5/8" Hole Diam, 4 Tooth Indexable Slotting Cutter - KVNS Toolholder, OD 3118.. Insert
Item #: 77425155
Brand: Kennametal
Model #: 1247704
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1260 |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Cutter Diameter (Decimal Inch) | 2.5000 |
| Cutter Diameter (Inch) | 2-1/2 |
| Hole Diameter (Inch) | 5/8 |
| Hole Diameter (Decimal Inch) | 0.6250 |
| Number of Teeth | 4 |
| Toolholder Style | KVNS |
| Series | KVNS A2 |
| Insert Style | OD 3118.. |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 5100 |
| Minimum Cutting Width (Decimal Inch) | 0.1260 |
| Keyway Width (Inch) | 1/8 |
| Keyway Width (Decimal Inch) | 0.1250 |
| Radius | No |
| Rake | Neutral |
| Cutter Body Width (Decimal Inch) | 0.0950 |
| Complete Insert Compatibility1 | OD 3118__ |
