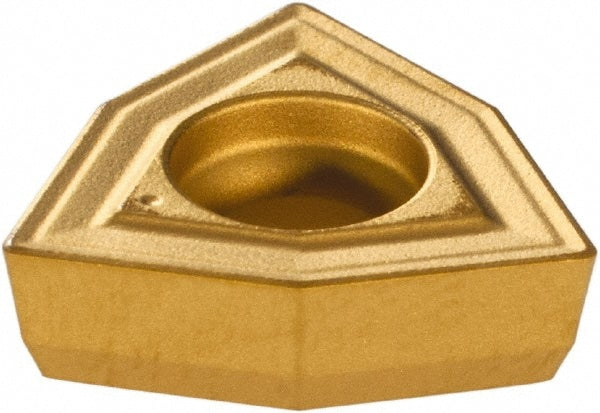

Indexable Drill Insert: WOEXW2901 BK72, Solid Carbide
Item #: 88239074
Brand: Komet
Model #: 1082320601
Product Specifications
| Insert Style | WOEX |
| Insert Material | Carbide |
| Manufacturer Grade | BK72 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Chipbreaker | 01 |
| Coating Process | CVD |
| Shape | Trigon |
| Relief Angle | 8 |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Standards | ISO 14001; ISO 90001:2008 |
| Insert Size | 06T304 |
| Length (Mm) | 6.60 |
| Length (Decimal Inch - 4 Decimals) | 0.2598 |
| Included Angle Degree | 84 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1496 |
| Coating/Finish | TiCN; TiN; Al2O3; TiC |
| Insert Size Code | W29 |
| Insert Hand | Neutral |
| UNSPSC Code | 23242105 |
| Country of Origin | Germany |
