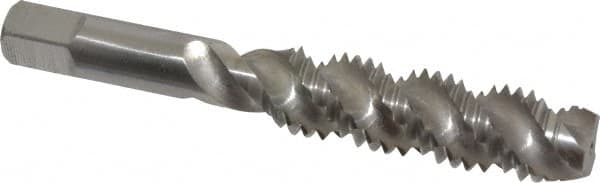

Hertel - 1/2-13 UNC 3 Flute 3B Plug Spiral Flute Tap - High Speed Steel, 3-3/8" OAL, Right Hand Flute, Right Hand Thread, H3
Item #: 77428456
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Plug chamfers are the most commonly used chamfer and are designed for efficiently threading through and blind holes. They have 3 to 5 threads.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Fast Spiral Flutes with 40-53 degree angles are suitable for ductile materials like aluminum and copper; medium to high carbon steels and free machining stainless steels.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 1/2-13 |
| Chamfer | Plug |
| Class of Fit | 3B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Inch) | 3-3/8 |
| Helix Angle | 52 |
| Thread Standard | UNC |
| Oversize | No |
| Flute Type | Fast Spiral |
