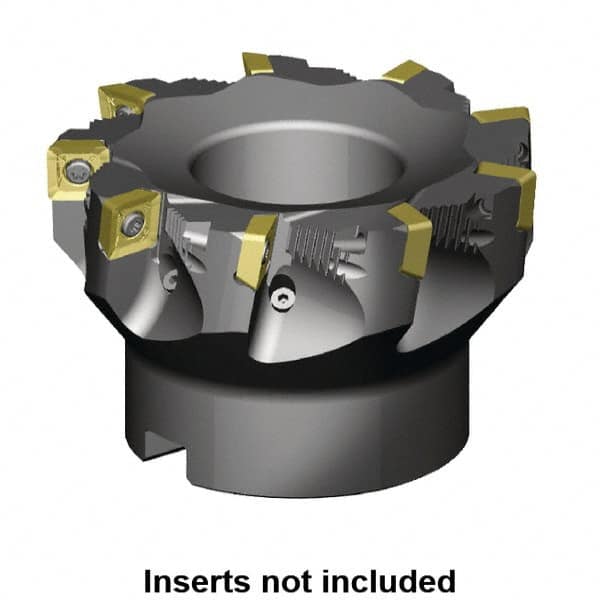

Kennametal - 80mm Cut Diam, 27mm Arbor Hole, 11mm Max Depth of Cut, 88.5° Indexable Chamfer & Angle Face Mill - 7 Inserts, SD_T1204PD_N__Z Insert, Right Hand Cut, 7 Flutes, Through Coolant, Series Z-Axis Mills
Item #: 77459881
Brand: Kennametal
Model #: 3120269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1500 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 88.5 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | SD_T1204PD_N__Z |
| Series | Z-Axis Mills |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4331 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Number of Flutes | 7 |
| Hub Diameter (mm) | 60.00 |
| Maximum RPM | 16300 |
| Cutting Direction | Right Hand |
| Pitch | Fine |
