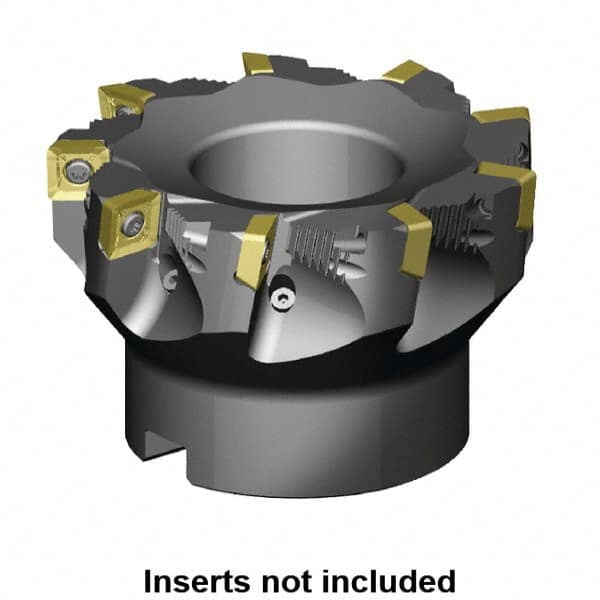

Kennametal - 5" Cut Diam, 1" Arbor Hole, 11mm Max Depth of Cut, 88.5° Indexable Chamfer & Angle Face Mill - 9 Inserts, SD_T43_PD_N__Z Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series KSSZR
Item #: 77460038
Brand: Kennametal
Model #: 3448920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5 |
| Cutting Diameter (mm) | 127.00 |
| Cutting Diameter (Decimal Inch) | 5.0000 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 88.5 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | SD_T43_PD_N__Z |
| Series | KSSZR |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | KSSZR |
| Number of Flutes | 9 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Maximum RPM | 12940 |
| Cutting Direction | Right Hand |
| Pitch | Medium |
