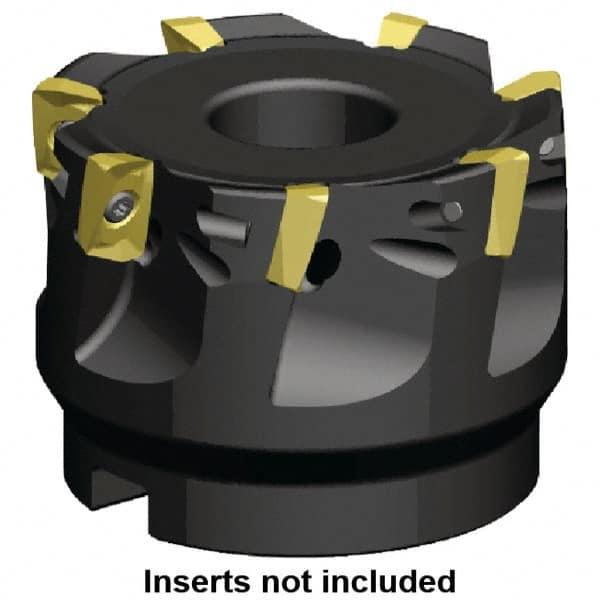

Kennametal - 6 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 9.9mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, EC10.., EP10.. Insert Compatibility, Series Mill 1-10
Item #: 77460079
Brand: Kennametal
Model #: 3745675
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5760 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | EC10.., EP10.. |
| Series | Mill 1-10 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 9.90 |
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 37.00 |
| Maximum RPM | 31600 |
| Pitch | Fine |
