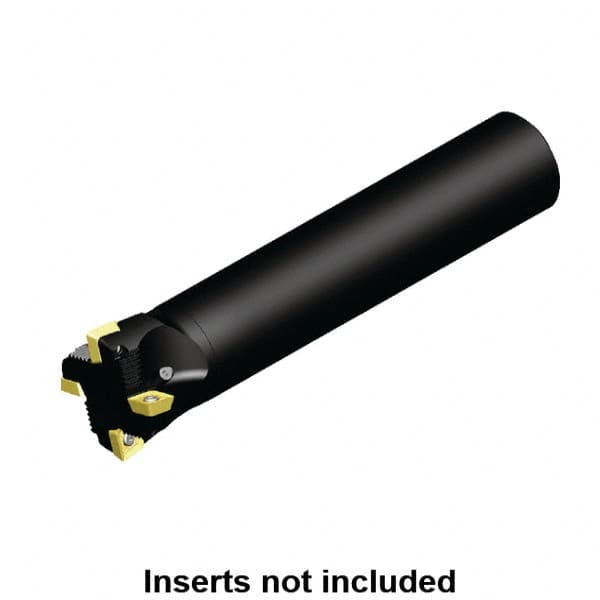

Kennametal - 2" Cut Diam, 0.433" Max Depth of Cut, 1-1/2" Shank Diam, Indexable Plunge End Mill - Cylindrical Shank, SD.T 43.. Insert Style, KISZR Toolholder Style, Through Coolant
Item #: 77460251
Brand: Kennametal
Model #: 3107216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2 |
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Cutter Inserts | 4 |
| Insert Style | SD.T 43.. |
| Toolholder Style | KISZR |
| Number of Flutes | 4 |
| Overall Length/Projection (Decimal Inch) | 8.0000 |
| Head Length (Decimal Inch) | 1.5000 |
| Coolant Hole Diameter (Decimal Inch) | 0.0790 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Through Coolant | Through Coolant |
| Maximum RPM | 20450 |
| ISO Number | KISZR200SD430C6A04 |
| End Mill Type | End Mill |
